Bower Band Saw Features
- High-cost performance: Our bow type band sawing machines are deeply loved by machinery manufacturing industries worldwide for their high quality and low price.
- Multi-angle cutting: For metal workpieces of different complexity, the saw bow can choose 90° and 45°
- Bow structure: The bow structure is adopted, which is easy to operate. It can cut large-capacity workpieces with stable sawing and high precision.
- Servo motor and drive: The domestic pure copper motor can work continuously for a long time. It has a long service life.
Bow Band Sawing Machine Technical Parameters
SPECIFICATIONS | Units | BS-912B | BS-1018B | BS-1018R | |
---|---|---|---|---|---|
90°Circular | mm(”) | 229(9) | 254(10) | 254(10) | |
90°Rectangular | mm(") | 178*305(7*12) | 127*457(5*18) | 160*406(6.3*16) | |
45°Circular | mm(") | 150(6) | 150(6) | 170(6.7) | |
45°Rectangular | mm(") | 127*150(5*6) | 150*190(6*7.5) | 160*190(6.3*7.5) | |
Blade speed | 50HZ | mpm | 26,50,73,95 | 29,50,73,95 | 29,50,73,95 |
60HZ | mpm | 32,60,88,115 | 35,60,88,115 | 35,60,88,115 | |
Blade size | mm | 27*0.9*2655 | 27*0.9*3280 | 27*0.9*3215 | |
Main motor power | kw | 1.1 | 1.5 | 1.5 | |
Drive | V-belt | V-belt | V-belt | ||
Machine weight | kg | 230/260 | 310/385 | 300/360 | |
Overall dimension | mm | 1540*590*1150 | 1750*820*1200 | 1780*840*1340 |
Product Details Display
![bow band saw machine](https://boruimc.com/wp-content/uploads/bower-band-saw-machine.jpg)

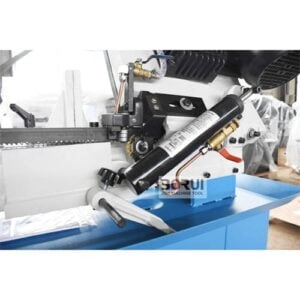

MAXIMUM CAPABLITY
Maximum capability 9″
![bowing band saw machine](https://boruimc.com/wp-content/uploads/bower-band-saw-1.jpg)

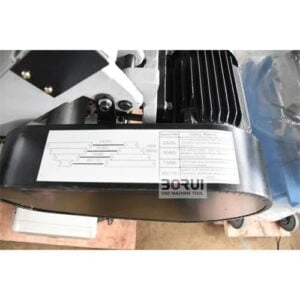

4-LEVEL SPEED REGULATION
Manual clamping of the vise for easy operation
![bow type band saw](https://boruimc.com/wp-content/uploads/bow-band-saw-1.jpg)

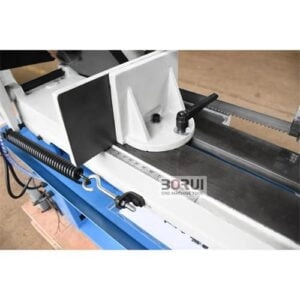

QUICK CLAMPING
Manual clamping of the vise for easy operation
![bow type band saw machine](https://boruimc.com/wp-content/uploads/bow-band-saw-machine.jpg)
MOTOR HIGH-CAPACITY
High-capacity due to controlled by motor
![band saw machine](https://boruimc.com/wp-content/uploads/band-saw-1.jpg)
CONRTOLLED HYDRAULIC
The falling speed of saw bow is controlled by hydraulic cylinder.The base of the roller can be move freely.
![saw band machine](https://boruimc.com/wp-content/uploads/band-saw-machine-5.jpg)
DEVICE SIZNG
Has asizing device(the machine will automatically stop after sawing materials)
![bower band saw](https://boruimc.com/wp-content/uploads/bower-type-band-saw.jpg)
PROTECTIVE AUTOMATICALLY
With a power break protection device, the machine will power off automatically when the rear protective cover is opened.
