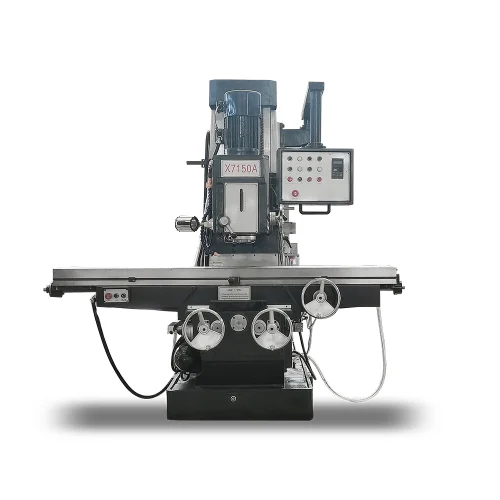

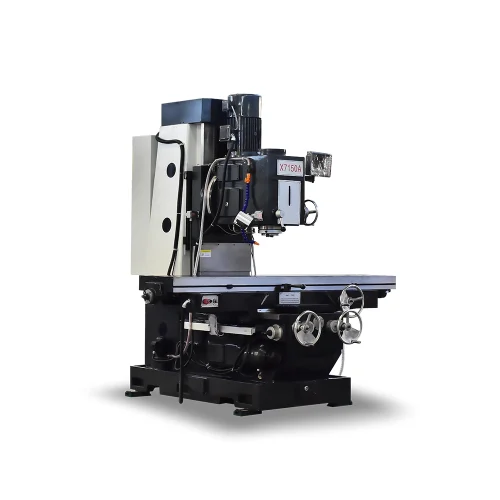

Product Features
- The X7150A vertical milling machine’s base, body, worktable, and intermediate slide are all made of high-strength materials and undergo artificial aging to ensure long-term stability.
- This milling machine features a bed-type design. The milling head uses a high-power, mechanically controlled, high-precision milling head, capable of operating within a 20° range left and right. The spindle quill feed offers automatic, manual, and manual fine-adjustment functions. The spindle is highly rigid and offers convenient and flexible speed adjustment.
- The spindle box can be raised or lowered manually or mechanically for rapid traverse. Mechanical feed operation is more convenient and efficient.
- The bed offers three vertical and horizontal feed modes: manual, stepless, and micro-feed, each offering different speeds to meet diverse machining requirements. Rapid feed allows workpieces to quickly reach the machining position, reducing non-machining time.
- The worktable’s X-axis travel reaches up to 1400 mm, expanding the machine’s machining range. The Y- and Z-axis guideways are wide rectangular. The X, Y, and Z-axis assemblies are ultrasonically hardened, precision-ground, and scraped. Furthermore, they utilize forced lubrication to reduce low-speed creep, improve accuracy, and extend machine tool life.
- The lubrication system provides forced lubrication to the longitudinal, transverse, and vertical lead screws and guideways, reducing wear and ensuring efficient machine operation. Furthermore, the cooling system adjusts the coolant flow rate by adjusting the nozzles to meet varying machining requirements.
- The milling machine’s control system is suspended on a cantilever above the right side of the machine, ergonomically designed for easy operation. The control panel features a simple, intuitive symbolic design.
Technical Parameters
| Parameter | Specification |
|---|---|
| Spindle Taper | ISO50 |
| Spindle Sleeve Travel | 105 mm |
| Distance from Spindle End to Table Surface | 100–630 mm |
| Distance from Spindle Center to Bed Guide | 580 mm |
| Spindle Head Swivel Angle | ±20° |
| Spindle Speed Range | 50–1400 rpm (3 gears, stepless) |
| Worktable Dimensions | 2100 x 400 mm |
| Worktable Travel (Longitudinal/Cross/Vertical) | 1400/460/500 mm |
| Worktable Feed Range (Longitudinal/Cross/Vertical) | 18 levels: 23.5–1180/23.5–1180/11.75–590 mm/min |
| Worktable Rapid Traverse Speed (Longitudinal/Cross/Vertical) | 2300/2300/1150 mm/min |
| Worktable T-Slot (Number/Width/Spacing) | 3/18/100 mm |
| Main Motor Power | 7.5 kW |
| Feed Motor Power | 1.5 kW |
| Coolant Pump Motor Power | 90 W |
| Coolant Pump Flow Rate | 25 L/min |
| Machine Dimensions (L x W x H) | 2390 x 1860 x 2220 mm |
| Machine Net/Gross Weight | 4690/5500 kg |
Machine Accessories
| Tool Name | Specification | Quantity |
|---|---|---|
| Flat Nose End Mill | ISO50 (4, 5, 6, 8, 10, 12, 14, 16) | 1 set |
| 7:24 Taper End Mill | ISO50/MS4 | 1 |
| Ball Nose End Mill | M16×500 | 6 |
| Radius End Mill | S12-14/S17-19/S22-24/S27-30/S32-36 | 1 set |
| Corner Radius End Mill | 5, 6, 8, 10 | 1 set |
| Roughing End Mill | 160×80 | 6 |
| Dovetail End Mill | $10 | 4 |
| Chamfer End Mill | – | 1 |
| Spotting Drill | – | 1 |
Product Detail Display

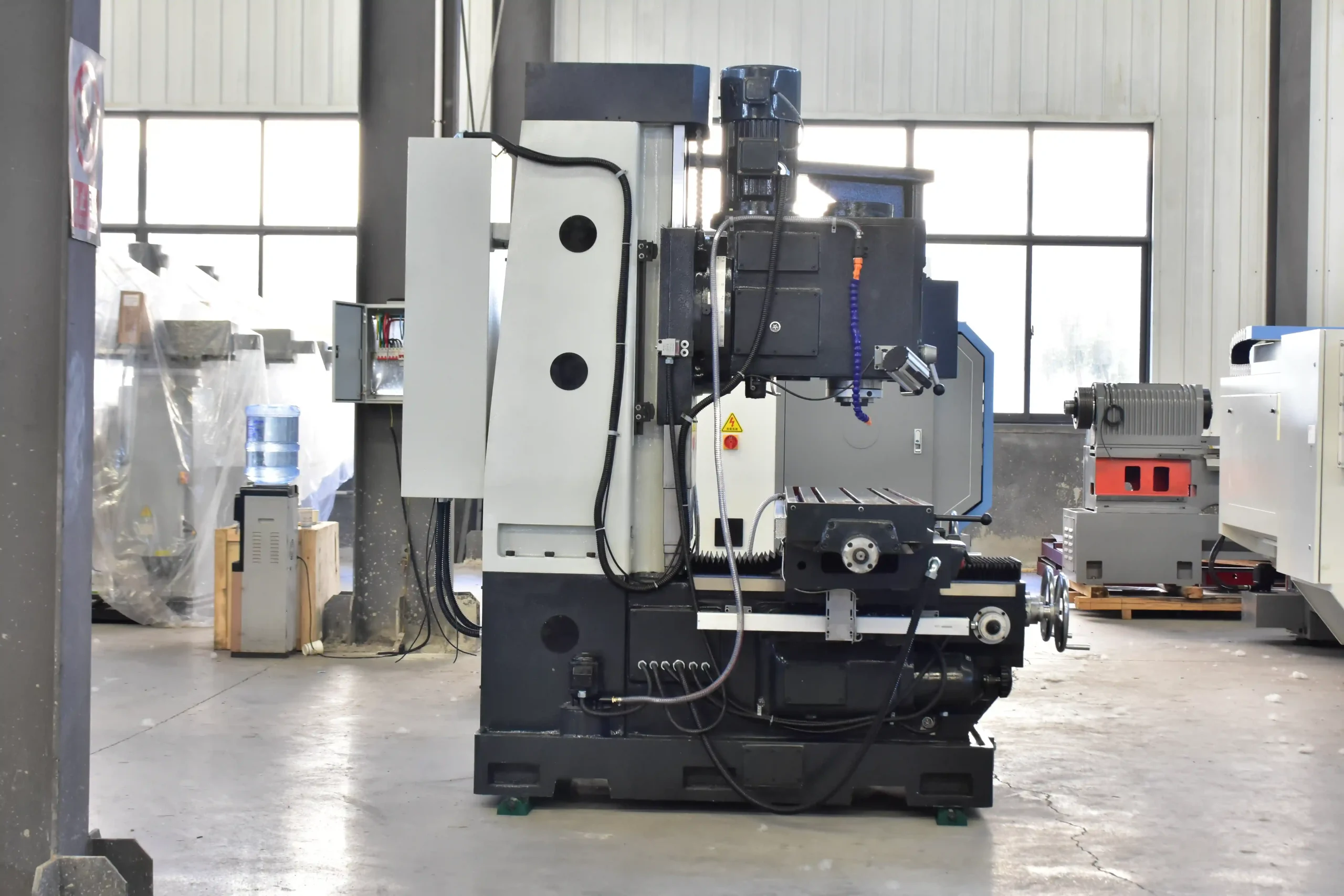

Comprehensive Machine Structure
The bed base, bed body, and other key components are manufactured using high-strength materials to ensure the machine tool’s long-term durability.
Vertical Milling
- Spinder taper 7:24 IS050
- Spindle speed: 66-1440rpm
Independent Key Operation Box
Independent key operation box, easy to use.
Workbench
- Thickened worktable
- High-frequency quenching
- High strength
- Good wear resistance
Rectangular Guideway
The Y-axis and Z-axis adopt rectangular guide rails that run smoothly.
3-Axis Digital Readout (Optional)
The reading value is accurate, reducing precision error.
