Features
- Servo spindle motor&driver

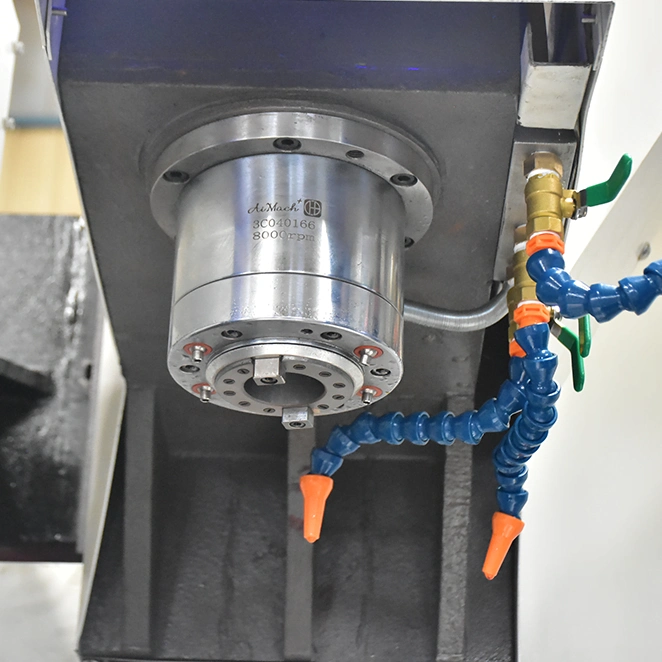

- Taiwan-made spindle unit, 8000, 10000 rpm speed available.
- Umbrella type 16T ATC can be chosen.
- Reliable control systems: Fanuc, Siemens, Mitsubishi, GSK.
- Systems can be selected according to customer requirements.
- Automatic central lubrication system.
- Full protection
- Three-axis lubricating system
- Separate hand-wheel
- Machine tool lighting work light
- Random technology document
- Spindle cone Hole cleaning air
- Electric cabinet cooling and heat exchanger
- Cleaning air gun
- Chip storage tank
- Servo transformer
- Foundation pad iron and adjusting bolt
Advantages Of CNC Milling Machine
- Straight line and circular arc cutting: It can complete the fine milling of straight line and circular arc at any angle, and multi-point drilling and tapping.
- Backlash-free transmission: The ball screw drive with preload is adopted, greatly improving speed and accuracy.
- Protection: A protection system suitable for processing and teaching, electronic timing, and strong lubrication to prevent artificial lack of oil on the track surface.
- Backlash-free transmission: The ball screw drive with preload is adopted, greatly improving speed and accuracy.
- Protection A protection system suitable for processing and teaching, electronic timing and strong lubrication to prevent artificial lack of oil on the track surface.
- High reliability: The body casting technology is advanced, and the aging treatment technology is adopted, and the casting label reaches the national standard.
- CNC control system: The standard configuration provides many CNC functions to achieve high-speed and high-precision four-axis motion control.
Technical Parameters

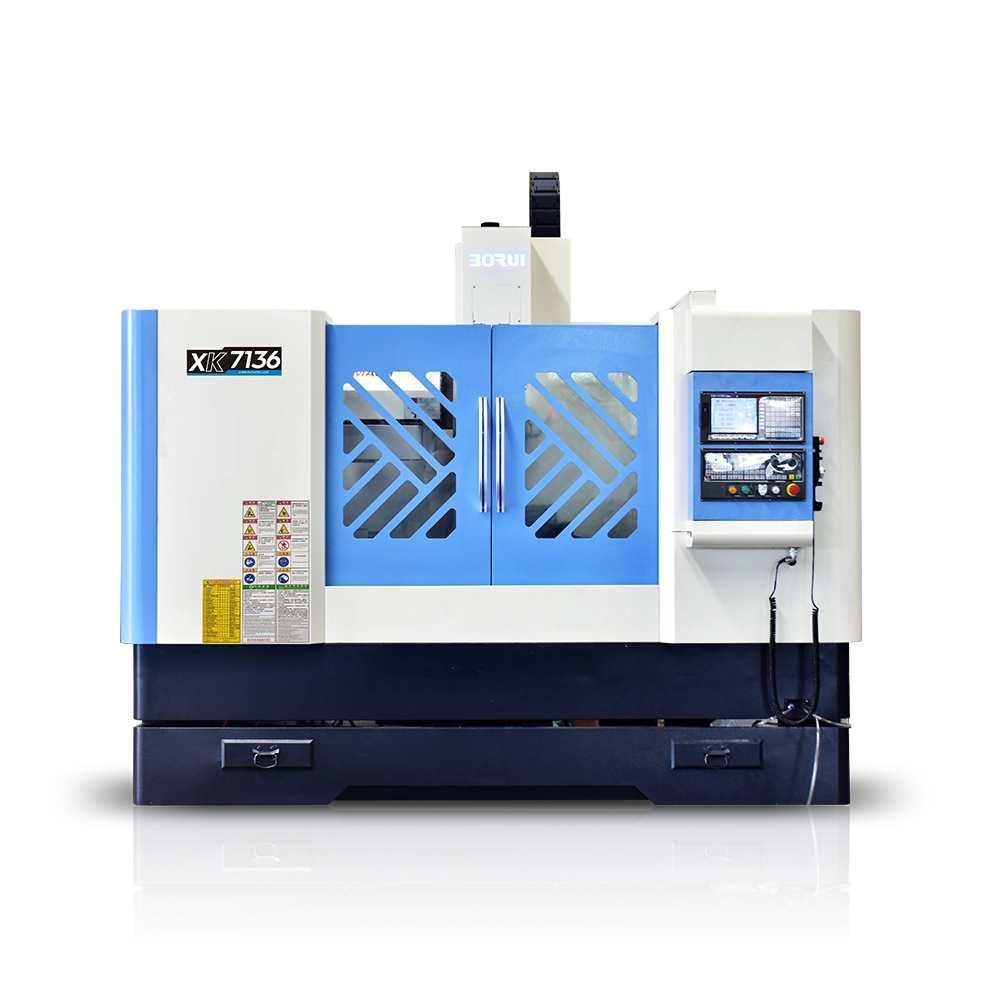

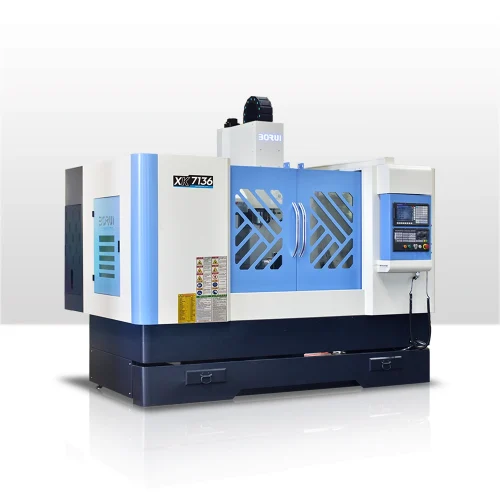

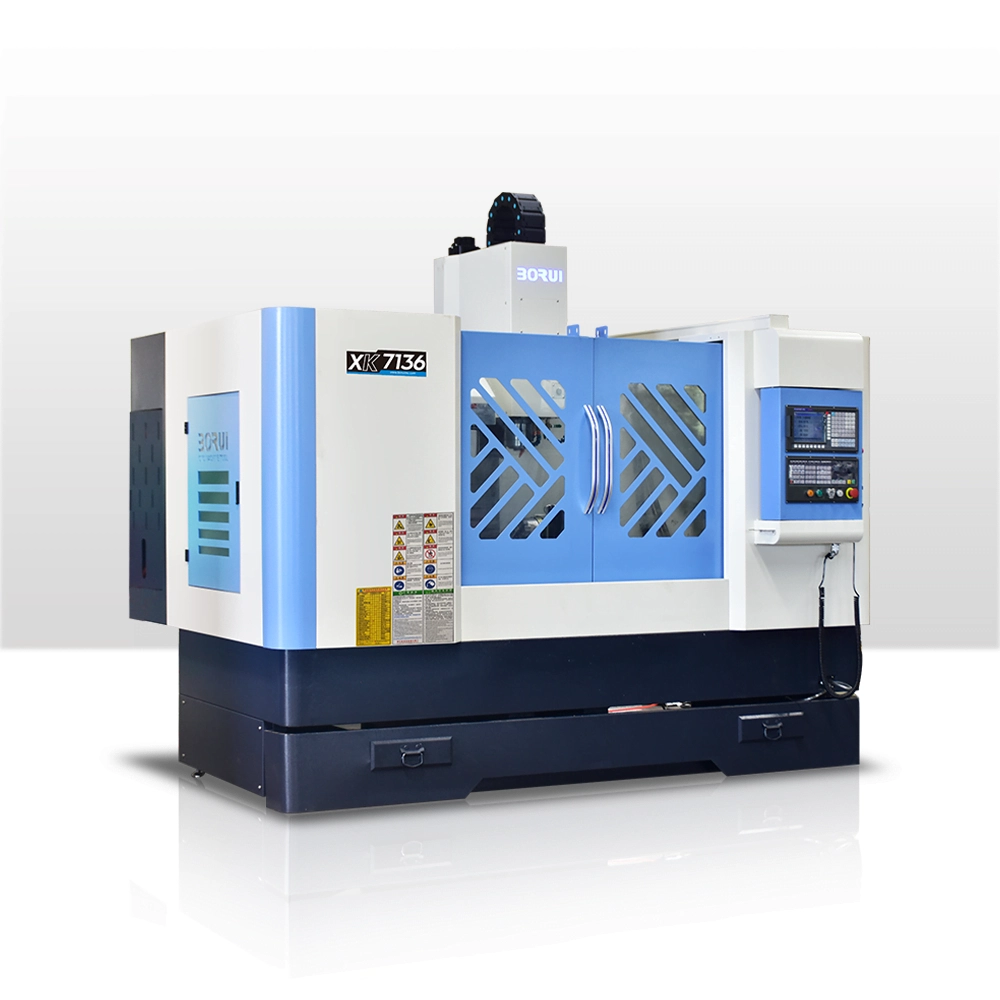

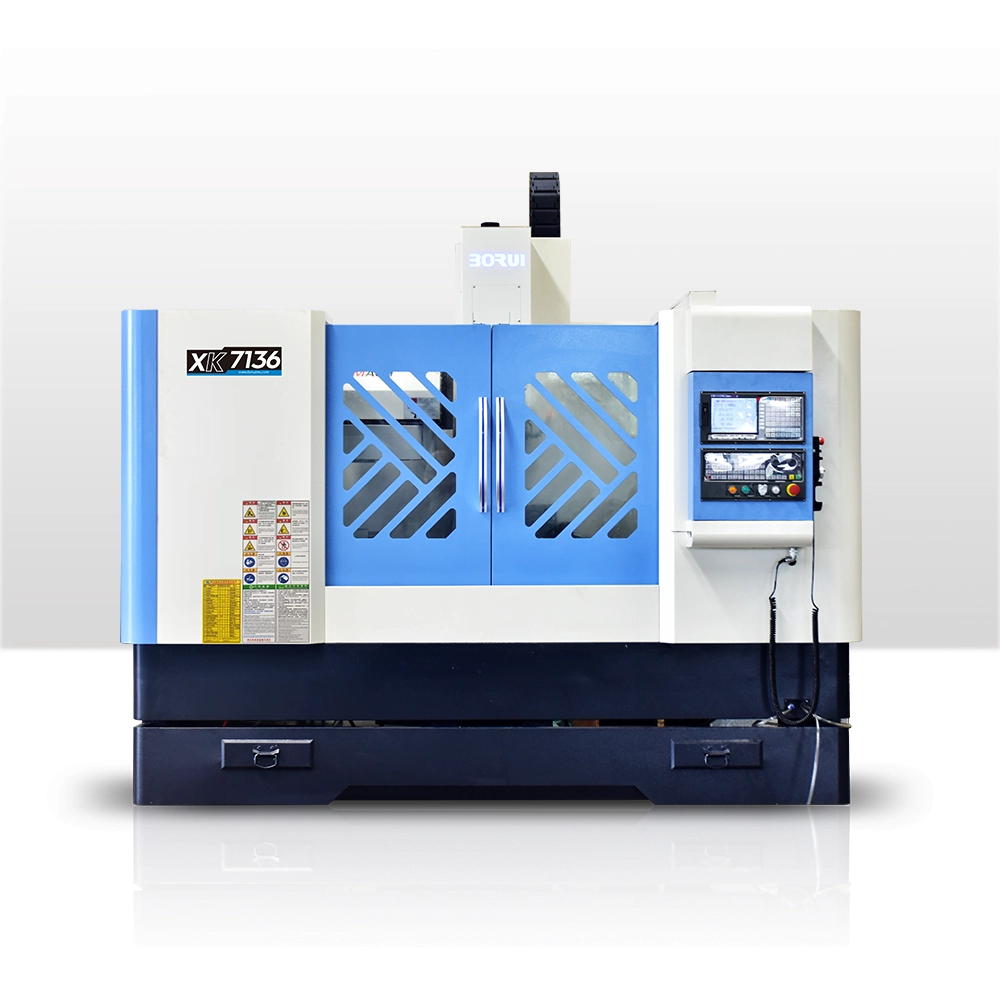

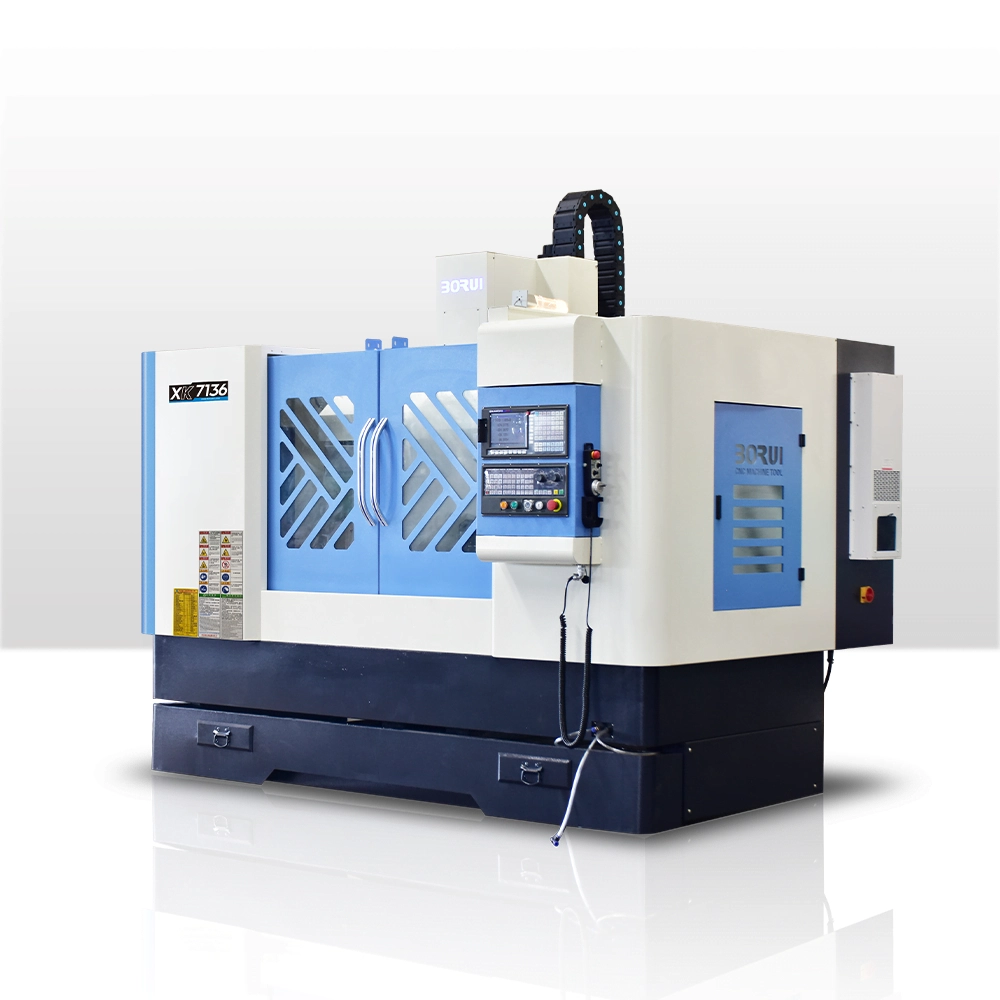

| Specifications | XK7136 |
|---|---|
| Table size(mm) | 1250×360 |
| X axis travel(mm) | 860 |
| Y axis travel(mm) | 450 |
| Z axis travel(mm) | 550 |
| Max. worktable load(kg) | 460 |
| T slot(number-width-pitch) (mm) | 3-18×80 |
| Max. spindle speed(rpm) | 10000 |
| Spindle taper | BT40 |
| Main motor power(kw) | 5.5 |
| X/Y/Z rapid traverse speed(m/min) | 20/20/20 |
| Cutting feed speed(m/min) | 1-6000 |
| Guide rail type | Hard rail |
| Distance from spindle axis to column surface(mm) | 465 |
| Distance between spindle nose and worktable surface(mm) | 100-600 |
| Positioning accuracy(mm) | ±0.008 |
| Repeat positioning accuracy(mm) | ±0.005 |
| Machine weight(kg) | 3000 |
| Overall dimension(mm) | 2380×1900×2350 |
| Max.tool weight(kg) | 18 |
| Overall dimension(mm) | 3000×2300×25500 |
