Product Advantages
- The machine tool is high-quality cast iron. An aging treatment eliminates stress. It suppresses deformation and vibration from cutting forces. The layout is reasonable.

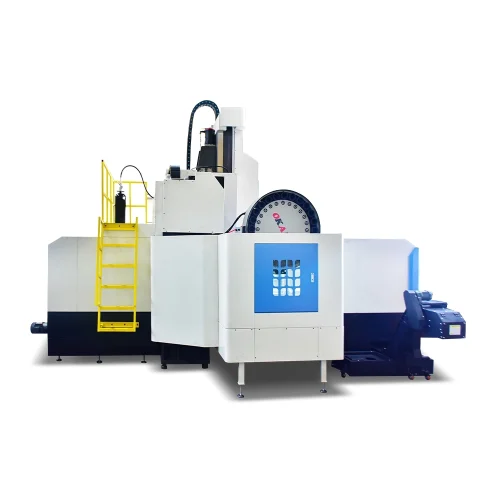

- The machine tool has a moving column gantry structure. It has a large stroke but a small footprint. This saves workshop space for customers.
- The processing of key parts of the machine tool is processed by advanced equipment. First-class equipment ensures precise machining of machine tool parts. It is vital to the machine tools’ performance.
- The machine tool has high machining accuracy and long-term precision. Its workpieces are consistent. This is due to its advanced design and perfect processes.
- Using Taiwan famous brand tool magazine, tool change is stable and durable.
- Optional SIEMENS, KND, FANUC, MITSUBISHI, GSK and other domestic and foreign operating systems.
- The bed worktable and other large parts, including the columns, beams, saddles, and spindle boxes, are all cast with high-strength iron and resin sand technology. These large pieces are designed with 3D software. The rib plate design improves their rigidity.
- The machine tool uses a mechatronics design. Its layout is compact and reasonable. It operates cheaply. The centralized control panel is easy to maintain.
Main Component:Controller
System：GSK/KND/SIEMENS /FANUC /MITSUBISHI
Tool change：OKADA (Taiwan)/DETA /HDW
Spindle UNIT ：TaiWan Posa/ Taiwan VOLIS / Roral
X/Y/Z BALL SCREW：Hiwin/PMI
Pneumatic element：Air TAC (Taiwan)
Unclamping cylinder：Hao cheng (Taiwan)
Auto oil lubricator：Hu run (Taiwan)/Japanese HERG
Screw Bearing：TPI (Taiwan brand)/NSK/SKF
Three axis motor：Unit with the cnc controller
Cooling the pump：PMY-25-5
Lubrication system：Single wire damping
Optional accessories:
- Dividing Head
- Automatic chip conveyor
- Clamping kits
- Flat vice
- Spindle speed above 12000rpm (Spindle directly contact)
- Centering 65mm +seperate needle
- Z axis Indictor
- The spindle out the water itself +oil-water separator
- Spindle 10000rpm
Technical Specs
| Specifications | BR2216 | |
|---|---|---|
| Working travel | ||
| X-axis | mm | 2200 |
| Y-axis | mm | 1600 |
| Z-axis | mm | 800 |
| Spindle nose to table | mm | 200-1000 |
| Width between columns | mm | 1450 |
| Worktable | ||
| Table size | mm | 2000*1200 |
| Max. loading capacity | T | 3 |
| Size of T-slot | mm | 22x180x6 |
| Spindle | ||
| Spindle speed | rpm | 6000 |
| Spindle taper | BT50 | |
| Spindle diameter | mm | φ190 |
| Spindle motor | KW | 15/18.5 |
| Spindle torque | N.m | 236 |
| Slide way | ||
| Type | Roller P grade | |
| X-axis 2 guide | mm | 55 |
| Y-axis 2 guide | mm | 55 |
| Z-axis 4 guide(Opt.Boxway) | mm | 45*2+35*2 |
| Driving screw | ||
| Ball screw accuracy | C3 grade | |
| Ball screw diameter x.y.z | mm | 63/50/50 |
  ###Feed rate | ||
| X axis rapid feed rate | mm/min | 18000 |
| Y axis rapid feed rate | mm/min | 20000 |
| Z axis rapid feed rate | mm/min | 20000 |
| Three-axis cutting feed rate | mm/min | 0-10000 |
| Tool magazine(Disc type) | ||
| Tool station | pcs | 24 |
| Max. tool length | mm | 300 |
| Max. tool dia | mm | Ø200 |
| Max. tool weight | kg | 15 |
| Tool specification | BT50 | |
| Tool change time | second | 6 |
| Factory precision | ||
| Positioning | mm | 0.010／1000 |
| Repeat positioning | mm | 0.006／1000 |
| Least input increment | mm | 0.001 |
| Other | ||
| Power Capacity | KVA | 30 |
| Net weight | t | 15 |
| Packing dimensions(L x W x H) | mm | 5800x3500x3800 |
Functions
TAIWAN SPINDLE
Famous Taiwan spindle.High speed,high precision,Good surface finishing.
STAND COLUMN
24 Arm ATC
WORKBENCH
Made of high-density,high-rigidity materials,high strength and good wear resistance.
CNC CONTROL SYSTEM
Optional:GSK/KND/SIEMENS /FANUC /MITSUBISHI
NITROGEN BALANCE CYLINDER
The servo motor of the spindle head moves up and down
Flat and horizontal spindle head weight
Realize high-speed, high-precision machining
