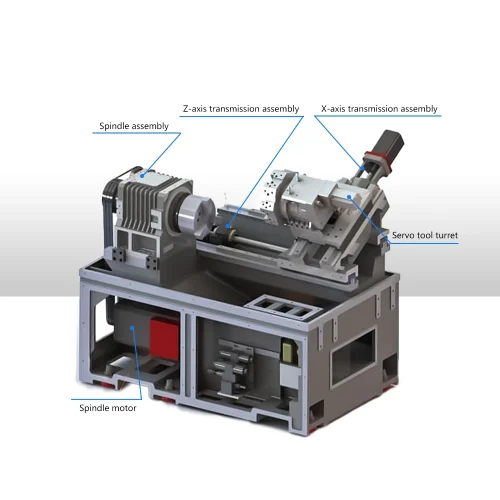

BR-150L Linear Guide Rail CNC Lathe Slant Bed Machine Features
- 30 degree integral bed
- 8〞hydraulic hollow chuck
- Spindle infinitely variable speed
- 12 station tool
- 4500rpm Spindle speeds
- 5.5kw Main motor power
- With the full cover
- Hydraulic tailstock
- Ball Screw Bearing
- Roller line rail
- lubrication, coolant system
- 380v 50hz 3phases
- High rigidity structure
- High precision and high stability
- CNC system Standard: GSK, Optional: Siemens, Fanuc, Mitsubishi and others
Product Video
Technical Parameters of The BR-150L CNC Lathe Slant Bed Machine
| Item | BR-150L | BR-150LA | BR-150DY | BR-150LADY(A2-6) | |
| Main Parameter | The max.swing diameter over bed | Φ510 | Φ510 | ||
| Max. machining diameter | Φ250 | Φ250 | |||
| Max. swing diameter over cross slide | Φ150 | Φ150 | |||
| Max. processing length | 260 | 245 | 235 | 225 | |
| Spindle And Chuck | Spindle end type | A2-5（6 ″） | A2-6（8 ″） | A2-5（6 ″） | A2-6（8 ″） |
| Spindle motor power | 5.5～7.5KW | 7.5～11KW | 5.5～7.5KW | 5.5～7.5KW | |
| Spindle speed | 4500rpm | 3500rpm | 4500rpm | 3500rpm | |
| Spindle through hole diameter | Φ56 | Φ66 | Φ56 | Φ66 | |
| Through the bar diameter | Φ45 | Φ52 | Φ45 | Φ52 | |
| Feed | X/Z axis lead screw specification | 3208/3210 | 3208/3210 | ||
| Y axis lead screw specification | 2508 | ||||
| X/Z axis linear guide specifications | 35/35 | 35/35 | |||
| Y axis linear guide specifications | 25 | ||||
| X/Z axis limit travel | 135/370 | 135/370 | |||
| Y axis limit travel | 60(±30) | ||||
| X/Z axis motor torque | 11N.M/11N.M | 11N.M/11N.M | |||
| Y axis motor torque | 7 N.M | ||||
| X/Z axis connection type | Direct connection | Direct connection | |||
| Turret | Turret | SH80-825-280 | |||
| Tower station | 12T | 12T | |||

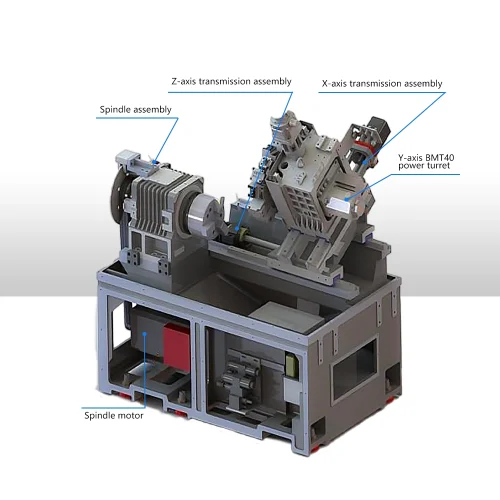

| Power tower | Y-axis power tower | ||||
| Power head specification | BMT40/ER20 | ||||
| Power head speed | 4000rpm | ||||
| Power head motor | 2.5Kw | ||||
| Power head to motor transmission ratio | 1∶1 | ||||
| Turret center height size | 80mm | ||||
| Overall Dimension | Bed type and inclination | Integrated/30° | Integrated/30° | ||
| Machine size（L * W * H) | 1430×1025×1380 | 1430×1025×1470 | |||
Advantages Of Linear Guide Rail Slant Bed CNC Lathe
- Advantages Of Linear Guide CNC Slant Bed Lathe Machine：
- High precision, high efficiency, and easy to operate. It uses a steel insert guideway, and the machine rigidity is good.
- The machine can improve machining accuracy. It can ensure the long-term stability of machining accuracy.
- CNC lathe with inclined bed adopts domestic or imported rigid horizontal turret tool rest. It has high positioning accuracy.
- Fully enclosed protection, better protection of the guide rail, screw, and bearing.

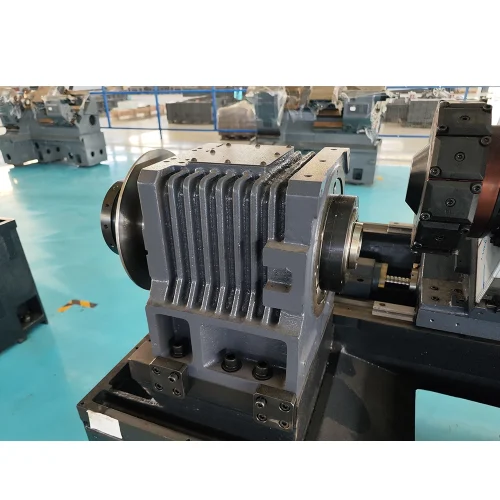

- The spindle is made of high-strength and high-rigidity material. It is made of multi-channel processing.
- High machining precision and stable machining quality.
- Machine tools have a high degree of automation. It can reduce labor intensity.
- The mass production of complex parts has had a good economic effect.
