Technical Parameters Of X6325 Manual Vertical Turret Milling Machine
| SPECIFICATIONS | Units | 4H(X6325) | 5H(X6330) |
|---|---|---|---|
| Table size | mm | 1270*254 | 1370*305 |
| Table travel | mm | 780/400/400 | 810/400/400 |
| T slot(number-width*pitch) | 3-16*50 | 3-16*65 | |
| Spindle taper | R8 （opt.ISO40) | R8 （opt.ISO40) | |
| Spindle speed range(steps) | rpm | 50HZ:65-4500,60HZ:80-5440(16) (opt.(variable)65-4000） | |
| Spindle travel | mm | 127 | 127 |
| Spindle feed range(steps) | mm | 0.045,0.086,0.142 (3) | 0.045,0.086,0.142(3) |
| Distance between spindle nose and table surface | mm | 90-510 | 90-510 |
| Main motor power | kw | 2.2（optional 3.7 kw ) | 2.2(optional 3.7 kw ) |
| Head rotation (left -right) | 。 | +90° | ±90° |
| Head rotation(front-rear) | 。 | ±45° | ±45° |
| Machine weight | Kg | 1400 | 1600 |
| Overall dimension | mm | 1550*1650*2250 | 1550*1650*2250 |
Features of X6325 Turret Manual Vertical Milling Machine
- This series of machine tools has a compact structure. It has a small volume and high flexibility. The milling head can rotate 360° in the X direction.
- The milling head of the machine tool adopts Taiwan’s precision high-speed milling head. The milling head has the advantages of high spindle speed and a significant speed change range. It can give full play to the efficiency of the tool. The spindle sleeve is automatically fed, and the tool is automatically stopped. The milling head is equipped with a fine-tuning limit element and an overload protection device. It can effectively ensure the accurate positioning of the tool and a certain depth of cut.
- The machine tool and lift tables adopt a centralized lubrication mechanism. They are equipped with manual oil pressure pumps.
- The machine tool feed can be manual or motorized. The X-direction motorized feed is realized by adding an electronic feeder.
- The guide rail surface is affixed with wear-resistant sheets. It has a long service life.
- Optional automatic walker and digital display equipment.
Product Image Display

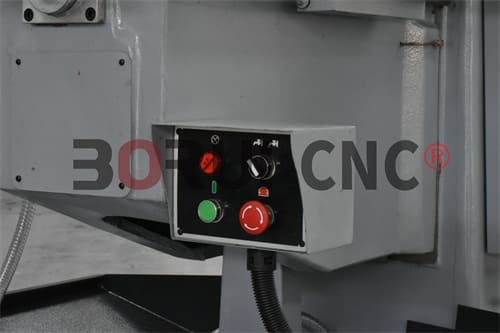

MILLING HEAD
Turret milling head can seivel 45°（fornt-rear）,rotate 90°（left-right）
MULTI-SPEED TRANSMISSION
X/Y axis automatic feed
WORKBENCH
Thickened workbench,Ultra-audio quenchigprecision grinding and scraping guide.
RECTANGULAR GUIDEWAY
X-axis,Y-axis,Z-axis adopt rectangular guide rails,running smoothly and stability.
RECTANGULAR GUIDEWAY
X-axis,Y-axis,Z-axis adopt rectangular guide rails,running smoothly and stability.
